Orbit Velocity electric assist Pendix
In stock - test ride model availableTest ride model available.

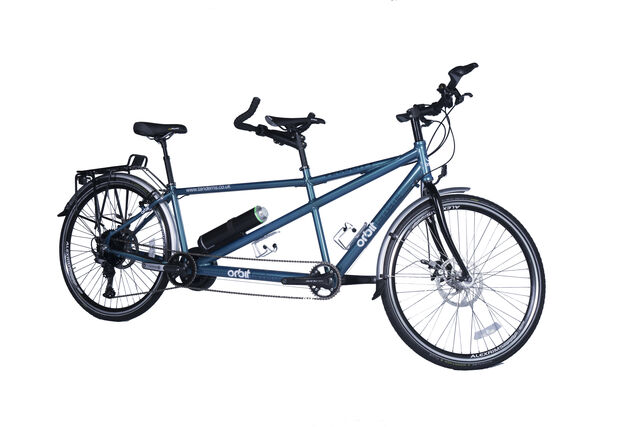

The Velocity with Pendix is designed and built in the Yorkshire Dales using Pendix eDrive 500 retro fit mid-drive 250 watt motor and is perfectly suited to the hills. The low gearing will take you up the steepest of climbs and the 3 brakes will take you down the steepest of descents with confidence.
The Velocity can take plenty of luggage with the front fork being rack compatible too, and it's 48 spoke wheels make it a great touring machine.
The Velocity is assembled for each customer so we can customise it to suit you exactly, drop handlebars are an option on the front as well. The Velocity with Pendix is the newest model in our e-tandem range.
The Pendix is also available for us to fit to your own tandem, please ask for more information.
|Options||18.5"/15" Satin black
18.5"/15" Airforce blue
20"/16" Satin black
20"/16" Airforce blue
22"/18" Satin black
22"/18" Airforce blue
23"/19" Satin black
|Description||Comes with 500wh battery|

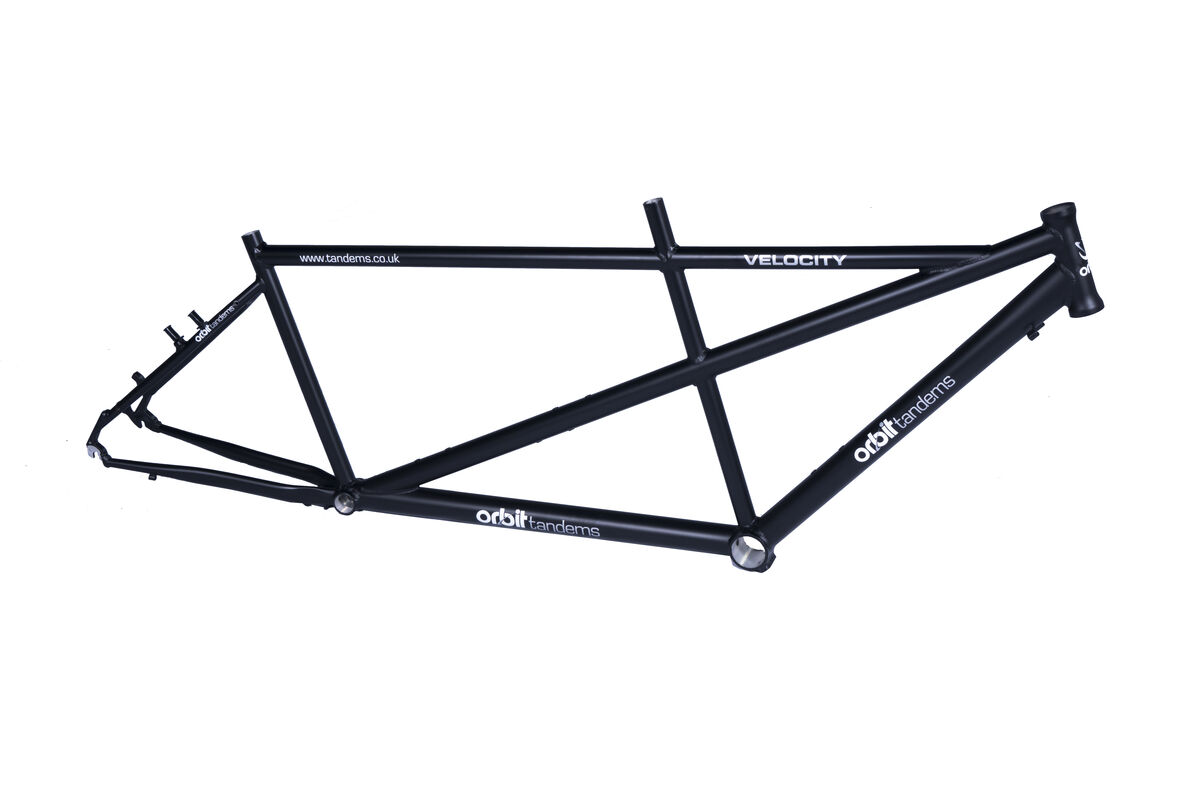

|Frame||Orbit lightweight aluminium|
|Forks||Orbit full chromoly steel disc|
|Rear Derailleur||Shimano Deore 11 speed|
|Shifters||Shimano SLX 11 speed right hand shift lever|
|Chainset (Pilot)||Shimano 170mm crank length|
|Chainset (Stoker)||Pendix motor with 38 tooth thick thin ring|
|Bottom Bracket (Pilot)||Alloy eccentric & external cups|
|Bottom Bracket (Stoker)||External cups|
|Chain (Crossover)||KMC nickel plated 160 link|
|Chain (Rear)||KMC E11 speed|
|Cassette||Microshift cassette 11 speed 11/46|
|Pedals (Pilot)||Alloy touring with strapless toe cups|
|Pedals (Stoker)||Alloy touring with strapless toe cups|
|Front Brake||Bengal cable pull disc brake, with 203mm rotor|
|Rear Brake||Bengal cable pull disc brake, with 203mm rotor|
|3rd Brake||Shimano V brake, controlled from the front handlebars with Shimano friction lever|
|Front Hub||Orbit tandem large flange, cartridge bearing, 6 bolt disc 48 hole|
|Rear Hub||Orbit tandem large flange, cartridge bearing, 6 bolt disc, 145mm OLD 48 hole|
|Rims||Alex G6000 deep section aero|
|Spokes||Sapim Strong butted stainless|
|Tyres||Schwalbe Marathon E plus 700 x 35c|
|Headset||Tange Thunda 1 1/8" semi intergated, reinforced bottom cup|
|Stem (Pilot)||Satori 31.8mm ahead|
|Stem (Stoker)||Orbit adjustable, 160mm to 200mm|
|Handlebars (Pilot)||Zoom black riser, 31.8 clamp size|
|Handlebars (Stoker)||Black alloy stoker bars, 25.4 clamp size, 49cm external width & 4.5cm stoker riser|
|Saddle (Pilot)||Velo sport|
|Saddle (Stoker)||Velo plush comfort touring|
|Seatpost (Pilot)||Black alloy, 400mm x 27.2|
|Seatpost (Stoker)||Zoom suspension seat post 40mm travel|
|Grips (Pilot)||Wave ergo lock-on with integrated bar ends|
|Grips (Stoker)||Velo black cork bar tape with under bar gel|
|Pannier Rack (Front)||-|
|Pannier Rack (Rear)||Black alloy 3 leg|
|Bottle Cages||2 alloy|
|Mudguards||Black or silver with stainless steel fittings|
|Extras||Every Orbit Tandem is built to order, so should you wish to change any part of the specification please get in touch.
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
